1. Quick Details of The CNC Milling Motor Driver Housing
| Place of Origin: | Guangdong, China | Model Number: | HJDJ401 |
| Type: | Custom | Material: | Al6061 |
| Finishing: | Anodized | Finishing Color: | Matte Black |
| Product name: | Motor Driver Shell | Size: | 70*40*40mm |
| Logo: | Laser Engraving accepted | MOQ: | 100pcs |
| Application: | Control pumps, Fans, Blowers, | Feature: | Matte Black Anodizing Coating |
| Robots etc. | Methods: | CNC Milling/Aluminum Profile | |
| Payment: | T/T, Western Union, PayPal | Tolerance: | +/-0.01mm |
2. Supply Ability
Supplier Ability: 10000 Pieces per month CNC milling motor driver shell
3. Packaging & Delivery:
Packaging Details 1pcs part in one pp bag+poly foam+carton
Port SHENZHEN
Lead Time
| Quantity(pcs) | 1-500 | >500 |
| Est. Time(days) | 25 | To be negotiated |
4. Product Description of CNC Milling Motor Driver Housing
UP Rapid is a CNC fabrication company that provide custom machined motor driver shell. Motor drives are widely used and are common in home appliances and consumer electronics. We manufacture motor driver housings, CNC milled aluminum material, and then oxidized. CNC milling is the best way to make small quantities and aluminium profiles will be the most affordable process if making small to medium batches.

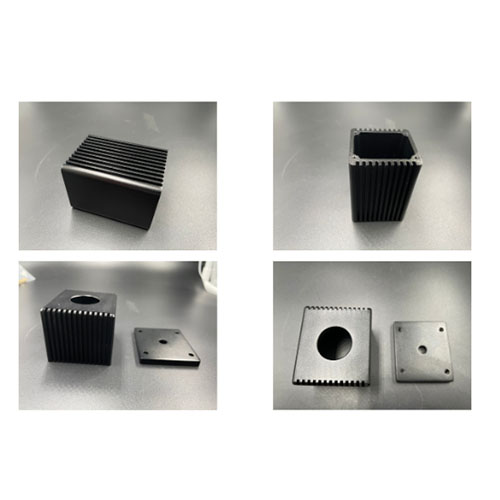

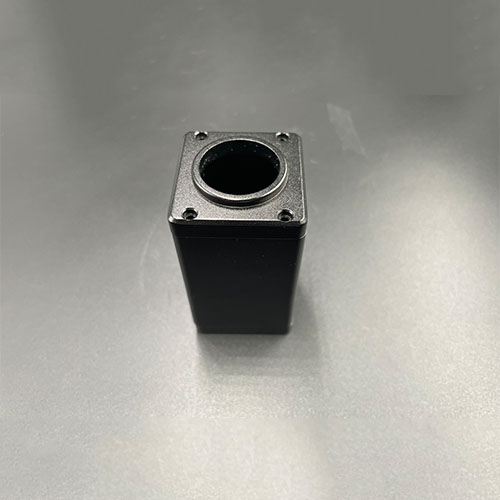

5. Product Show for CNC Milling Motor Driver Housing
6. CNC Milling Capabilities
Our CNC milling process produces custom prototypes and end-use production parts. We use 3-axis milling, 4-axis milling and 5-axis indexed milling processes to manufacture parts from more than 30 engineering-grade plastics and metals. With machined production parts, you can also get more competitive pricing at higher quantities in addition to first article inspection (FAI) reporting, material certifications, and additional finishing options like anodizing and plating.
Our CNC milling service is commonly used for functional prototypes, jigs and Fixtures and production components in lower volumes.
| CNC Milling | Material | US/in. | Metric/mm |
| Max Dimensions |
|||
| 3axis | Metals and Plastics(Acetal) | 43.31in.*18.11in.*25.59in. | 1100mm*460mm*650mm |
| 4axis | Metals and Plastics(Acetal) | 15.75in.*7.87in.*7.87in. | 400mm*200mm*200mm |
| 5axis | Metals and Plastics(Acetal) | 11.81in.*11.81in.*3.94in. | 300mm*300mm*100mm |
| Min Dimensions | |||
| All | Metals and Plastics(Acetal) | 0.25in.*0.25in.*0.04in. | 6.35mm*6.35mm*1.02mm |
| Tolerance | +/-0.02mm | ||
| Text | Minimum width of 0.018 in. (0.457mm), depth of 0.0118 in. (0.3mm). | ||
7. Aluminum Material Options for CNC Milling Motor Driver Housing
Al5052, Al6061, Al7075 are commonly used aluminum alloy in CNC milling. What are the differences between them? Which aluminum alloy is the right one for your mechanical part application? The answers to those questions are critical and very important for people who need to decide on raw material. Especially for the metal parts engineers in their part design.
| Material | Elastic Modulus(GPA) | Tensile Strength(MPA) | Yield Strength(MPA) | Attributes | Application |
| 5052 | 70 | 230 | 195 |
Corrosion Resistance, Weldability, Medium Strength |
Sheet Metals, Oil Pipe, Traffic Vehicles, Ships, Instruments, Lamp Bracket And Rivets, Hardware, Electrical Shell, Etc |
| 6061 | 69 | 310 | 275 | Machinability (Excellent) Weldability Corrosion Resistance Anodizing (Excellent) | Automatic Mechanical Parts, Precision Parts, Mold Manufacturing, Electronics, And Precision Instruments |
| 7075 |
72 |
570 |
505 |
Machinability Wear Resistance Strength (Excellent) |
Aircraft, Gears,Shafts, Missile Components, Turbines, Mold, Fixtures |
8. Packaging Delivery
9. Factory & Facility
(Factory Building)
(Factory Perspective)
CNC Milling①
CNC Milling②
CNC Milling③
Quality Inspection Room
10. FAQ
Why should I choose UP Rapid company to do my parts subjects?
UP Rapid is a prototyping company integrating industry and trade, which means that you directly contact the manufacturer. Our own factory provides parts to you through our industrial CNC machining, 3D printing, sheet metal processing, and injection mold services.
How do you maintain the confidentiality of client projects?
We sign an NDA (nondisclosure agreement) with the customer, and the customer directly provides the 3D CAD model to the factory, which avoids the multi-directional circulation of drawings and guarantees the confidentiality.
What is the advantage of working with UP Rapid?
We have high-precision manufacturing equipment and testing equipment to ensure the qualified rate of parts.
What industries use UP Rapid services?
We serve industries like consumer product, electronics, telecommunication device,and precision instrument.
How many processing equipment do you have?
We have 20 3+2axis milling&turning machines, 6 lathes, 20 3D printers, 5 injecting machines and other measuring equipment.
How to ensure that customers have a satisfactory service?
Our services include process consultation, progress report during cooperation, and seven-day after-sales service after completion.
Do you provide first article of inspection (FAI) service to customers?
We offer FAIs on machined and molded parts.
